BLDC+CCT+RF433 Fan Controller
BLDC 风扇
- PSR isolation HPF system constant voltage currentlimiting output.
-Adaptive Motor FOC algorithm. -Support single resistor/triple resistor sampling optional.
-Control mode: torque control, limited power, limitedspeed, positive and negative electronic brake. -Integrated Fan-Light Function.
-Supports independent operation of the fan and light, aswell as simultaneous operation of both. -Supports a timer function: when the set time is reached, both the fan and light will turn off simultaneously.
-Dimming & CCT Adjustment: Stepless regulationsupported. -Complete protection functions: over voltage, undervoltage, over current, blocking, phase deficiency, internalpower supply monitoring and protection
- AC Line Under Voltage and Over Voltage Protection- Driver output open circuit, short circuit, a cycle by acycle to limit the current protection

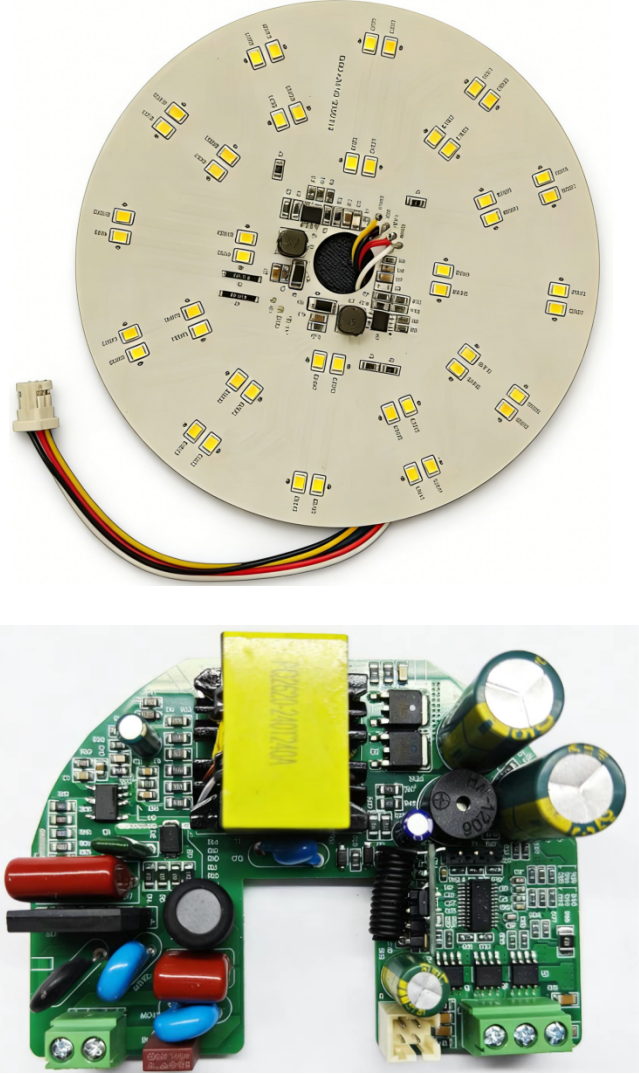

- PCB integrated molding, high production efficiency, lowcost
